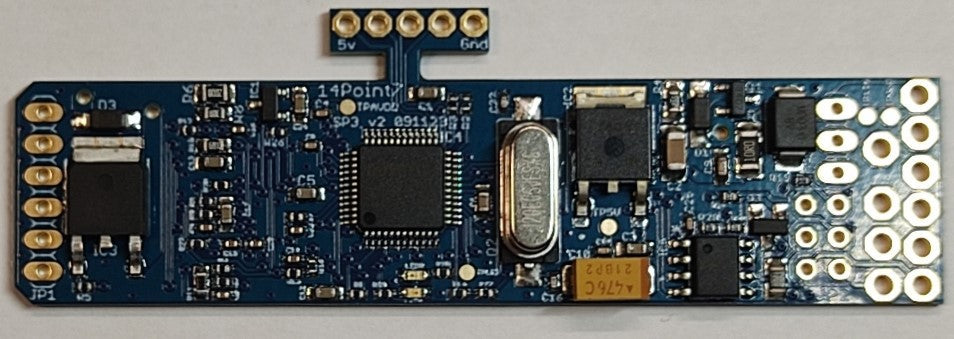

Spartan 3 OEM

Spartan 3 OEM is a low-cost, miniature Wideband O2 Controller suitable for integration into your own products/projects. Spartan 3 OEM is a complete Wideband O2 Controller requiring only an external inline fuse on 12[V] supply. Spartan 3 OEM is based on our Spartan 3 Wideband Controller. Spartan 3 OEM has CAN Bus.

For evaluation, we recommend Assembled LSU 4.9 Connector which solders directly to Spartan 3 OEM modules.

Spartan 3 OEM Specifications:

• Dimensions: 74mm x 18mm
• Compatible with Bosch LSU 4.9, Bosch LSU Adv, and clone LSU 4.9 sensors
• Does not require Free Air Calibration but FAC is available. Recommended for clone LSU sensors only
• Accuracy: 0.01 Lambda
• Typical Response Time, Free Air to 0.8 Lambda: 10 ms in Performance Mode 1, 20 ms in Performance Mode 0
• Integrated 5v Power Supply with Over-Voltage, Over-Current, and Reverse Polarity Protection
• Outputs: Programmable Linear, Programmable Simulated Narrowband, UART, CAN
• Default Linear Output: 0v @ 0.68 Lambda linear to 5v @ 1.36 Lambda
• Default Simulated Narrowband switch point @ 1.00 Lambda
• UART specifications: 5v, 9600 Baud, 8 Data Bits, 1 Stop Bit, No Parity, No Flow Control
• CAN Bus support for the following ECUs: Megasquirt 3, Adaptronic, Link, Haltech, HP Tuners, as well as YourDyno dyno controller
• CAN Bus output of Lambda or %O2
• Operating Voltage: 8 V to 18 V
• Typical 12 V Operating Current: 1 A
• Max 12 V Operating Current: 3 A
• Operating Temperature: -40 C to +105 C
• Lambda Range: 0.6 Lambda to 3.4 Lambda
• %O2 range: 0%O2 to 21%O2
• Lean Burn mode for lean burn applications
• Smart Heatup: RPM Triggered Heating of the oxygen sensor for MS3 ECU over CAN
• Smart Heatup: Temperature Triggered Heating — Spartan 3 OEM will wait for the oxygen sensor to be heated to 350 C by engine exhaust gases before heating up the sensor
• Output Sequencer provides a dual-level precision voltage signal to the Linear Output during sensor heatup
• 0.1% tolerance components for all components that affect accuracy
