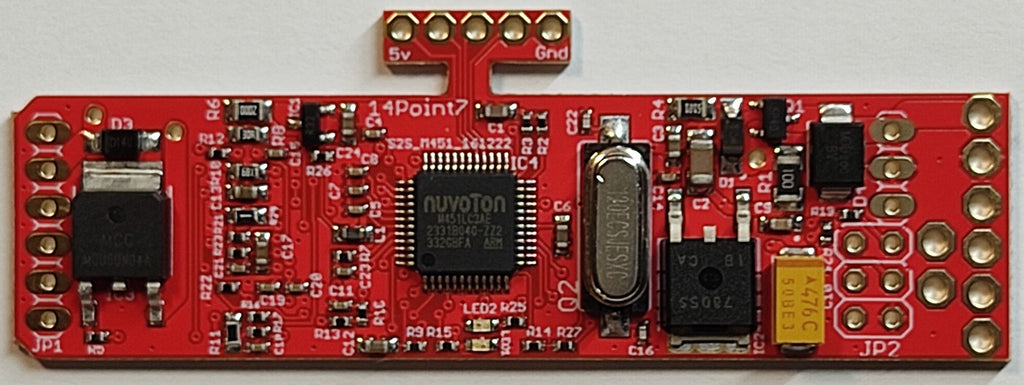

Spartan 3 Lite OEM

Spartan 3 Lite OEM is a low-cost, miniature Wideband O2 Controller suitable for integration into your own products/projects. Spartan 3 Lite OEM is a complete Wideband O2 Controller requiring only an external inline fuse on 12V supply. Spartan 3 Lite OEM is based on our Spartan 3 Lite OEM Wideband Controller.

For evaluation, we recommend Assembled LSU 4.9 Connector which solders directly to Spartan 3 Lite OEM modules.

Spartan 3 Lite OEM does not have CAN Bus.

Spartan 3 Lite OEM Specifications:

• Dimensions: 68mm x 18mm
• Compatible with Bosch LSU 4.9, Bosch LSU Adv, and clone LSU 4.9 sensors
• Does not require Free Air Calibration but FAC is available. Recommended for clone LSU sensors only
• Accuracy: 0.01 Lambda
• Typical Response Time, Free Air to 0.8Lambda: 10ms in Performance Mode 1, 20ms in Performance Mode 0
• Integrated 5v Power Supply with Over-Voltage, Over-Current, and Reverse Polarity Protection
• Outputs: Programmable Linear, Programmable Simulated Narrowband, UART
• Default Linear Output: 0v @ 0.68 Lambda linear to 5v @ 1.36 Lambda
• Default Simulated Narrowband switch point @ 1.00 Lambda
• UART specifications: 5v, 9600 Baud, 8 Data Bits, 1 Stop Bit, No Parity, No Flow Control
• Operating Voltage 8[V] to 18V
• Typical 12V Operating Current: 1A
• Max 12[V] Operating Current: 3A
• Operating Temperature: -40C to +105C
• Lambda Range: 0.6 Lambda to 3.4 Lambda
• %O2 range: 0%O2 to 21%O2
• Lean Burn mode for lean burn applications
• Smart Heatup; Temperature Triggered Heating, Spartan 3 Lite OEM will wait for the Oxygen sensor to be heated to 350C by engine exhaust gases before heating up the sensor
• Output Sequencer provides a dual-level precision voltage signal to the Linear Output during sensor heatup.
• 0.1% tolerance components for all components that affect accuracy
