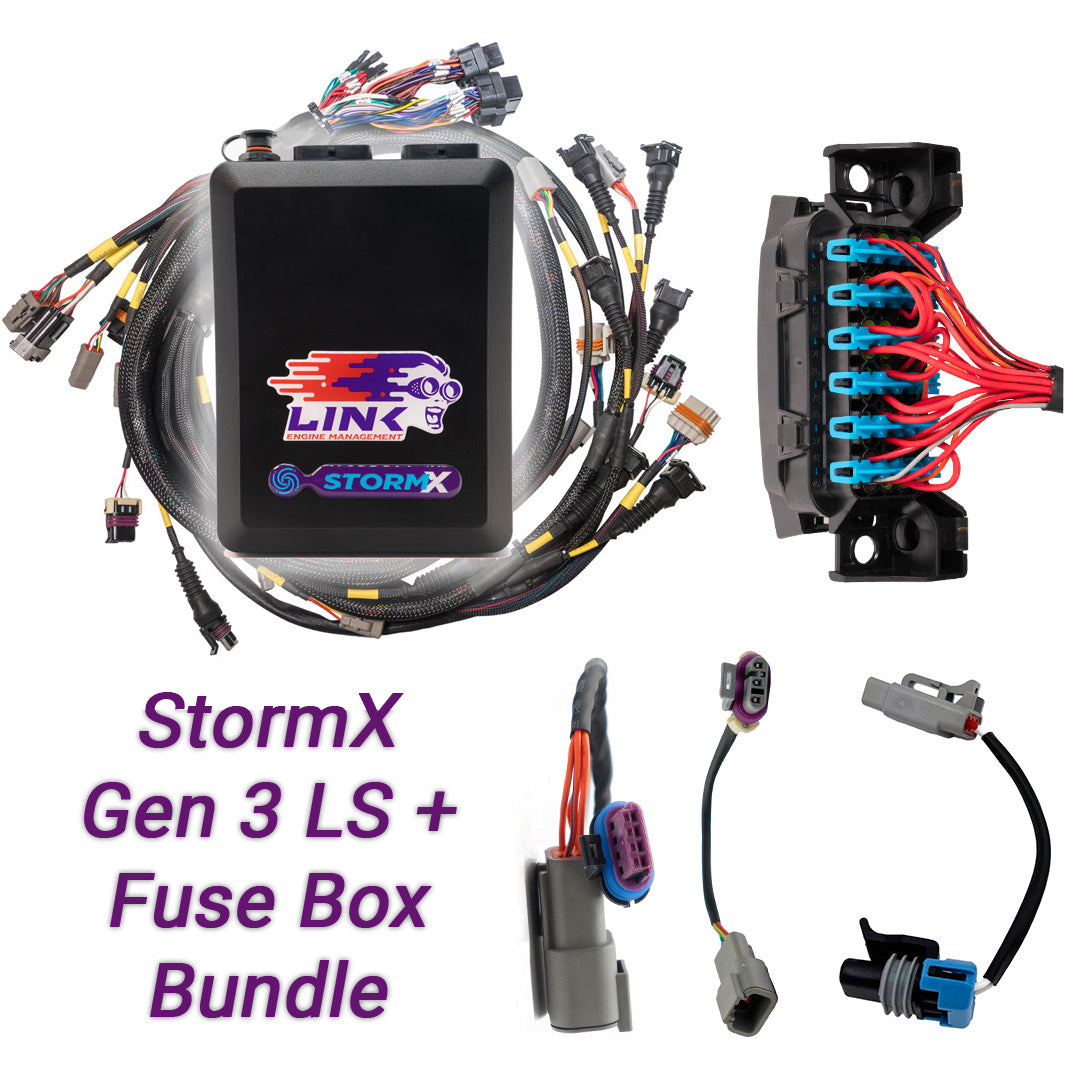

Gen3 LS Bundle - G4X StormX ECU + LS Engine Harness + Fuse Box bundle

A ready-to-go solution to connect a Link ECU to your Gen 3 (LS1 & LS6), Cable Throttle LS V8 engine, including a fuse box and relay.
Bundle Includes:

• G4X StormX ECU (8 x Injector and 8 x Ignition Drives) - 108-4000
• Terminated Engine Harness GM LS GEN3/4* - 101-0300
• LS Stepper Adapter Harness - 101-0301
• LS MAP Adapter Harness - 101-0302
• LS Gen 3 Knock Adapter Loom - 101-0305
• LS Fuse and Relay Box - 101-0310

Advanced features on the StormX ECU:

• Built in trigger oscilloscope.
• Onboard Knock Control – support for two knock sensors wired directly to the ECU.  No external amplifier required.
• Boost control can be open or closed loop with up to three switchable tables.
• Idle valve solenoid or stepper motor control.
• Rotary oil metering pump control.
• Most Motorsport features including full gear shift control, antilag and launch control
• Up to 4 fully variable closed loop VVT cams.

The harness includes multiple dedicated connectors for key components, such as:

•Pedal connector (for DBW pedal): 5V, sensor ground, two analog voltage inputs
•CAN2 connector: for CAN devices like lambda modules, displays, keypads, etc.
•MAP connector: compatible with Link MAP sensors; adapter available for factory LS MAP sensors
•Knock sensor connector: supports up to two knock sensors, with adapters available for Gen 3 or Gen 4 factory sensors
•Alternator connector: for “F Body” alternators; provides exciter/lamp wire to terminal B
•Transmission (“Trans”) connector: for reverse switch, DI, or other functions needing cabin signal
•IAC connector: for 4-wire stepper IAC; if no IAC is used, those channels may be used for other functions (boost valve, NOS, etc.)
•TPS connector: for cable-throttle sensors; if using DBW, may be repurposed
•DBW (electronic throttle) connector: for DBW throttle bodies, providing analog inputs, 5V, sensor ground; may be repurposed in cable-throttle engines

The terminated harness has the following features:

•Designed to match the PC Link base maps IO setup so that most engines can be made to run with minimal adjustments.
•Provides spare IO via a “Spares” connector — extra capacity for sensors, switches, or custom addition
