The 1UZ & 3UZ VVT engine swap kit is plug-and-play and compatible with the Link ECU G4x Xtreme which allows for OEM functionalities such as air conditioning, cruise control, ABS, power steering, seamless CAN integration, and traction control. This kit requires 3UZ style coil packs and the 3UZ 2-connector throttle body.
Compatibility:
Link ECU G4x Xtreme
Included:

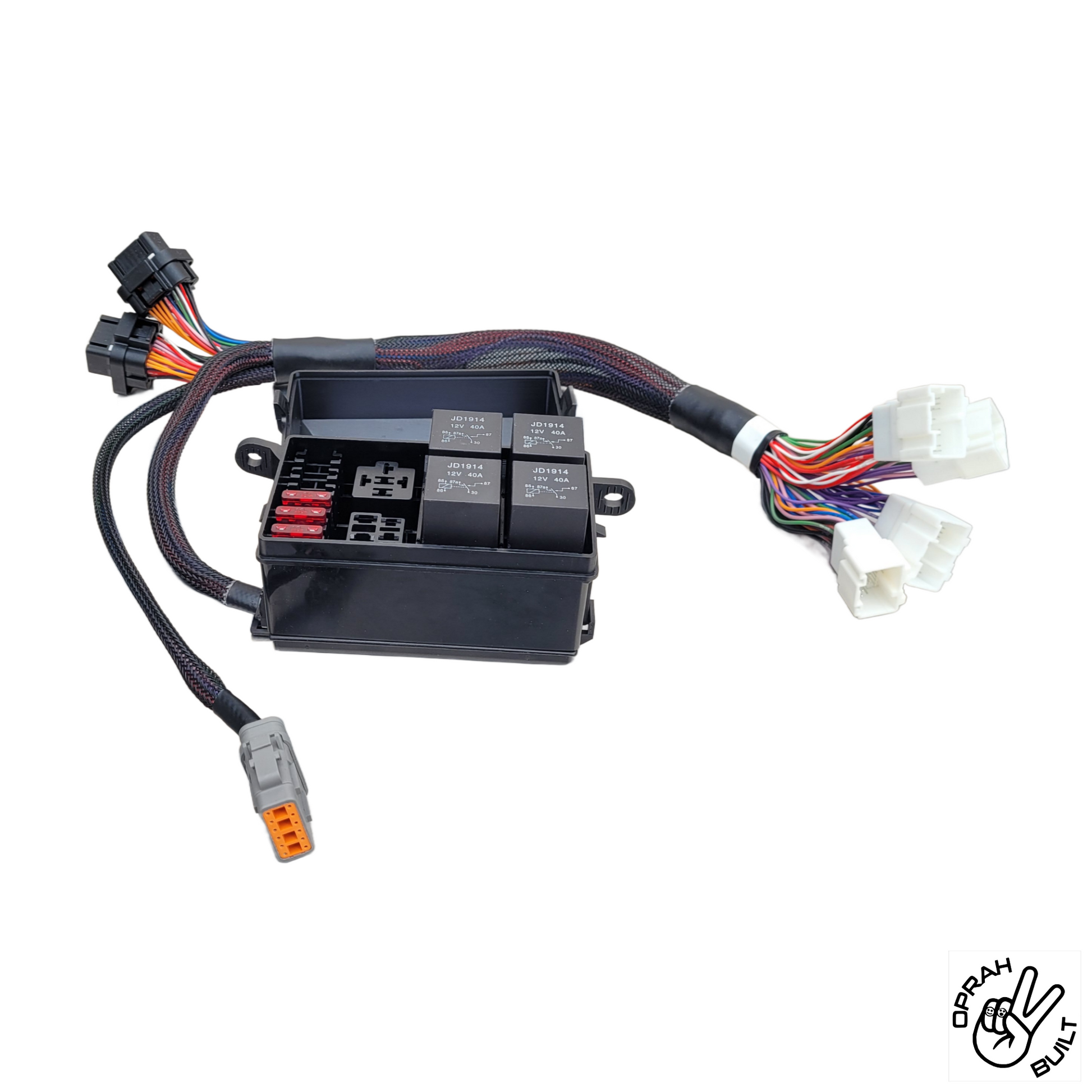

ECU patch harness suited for Link ECU G4x Xtreme

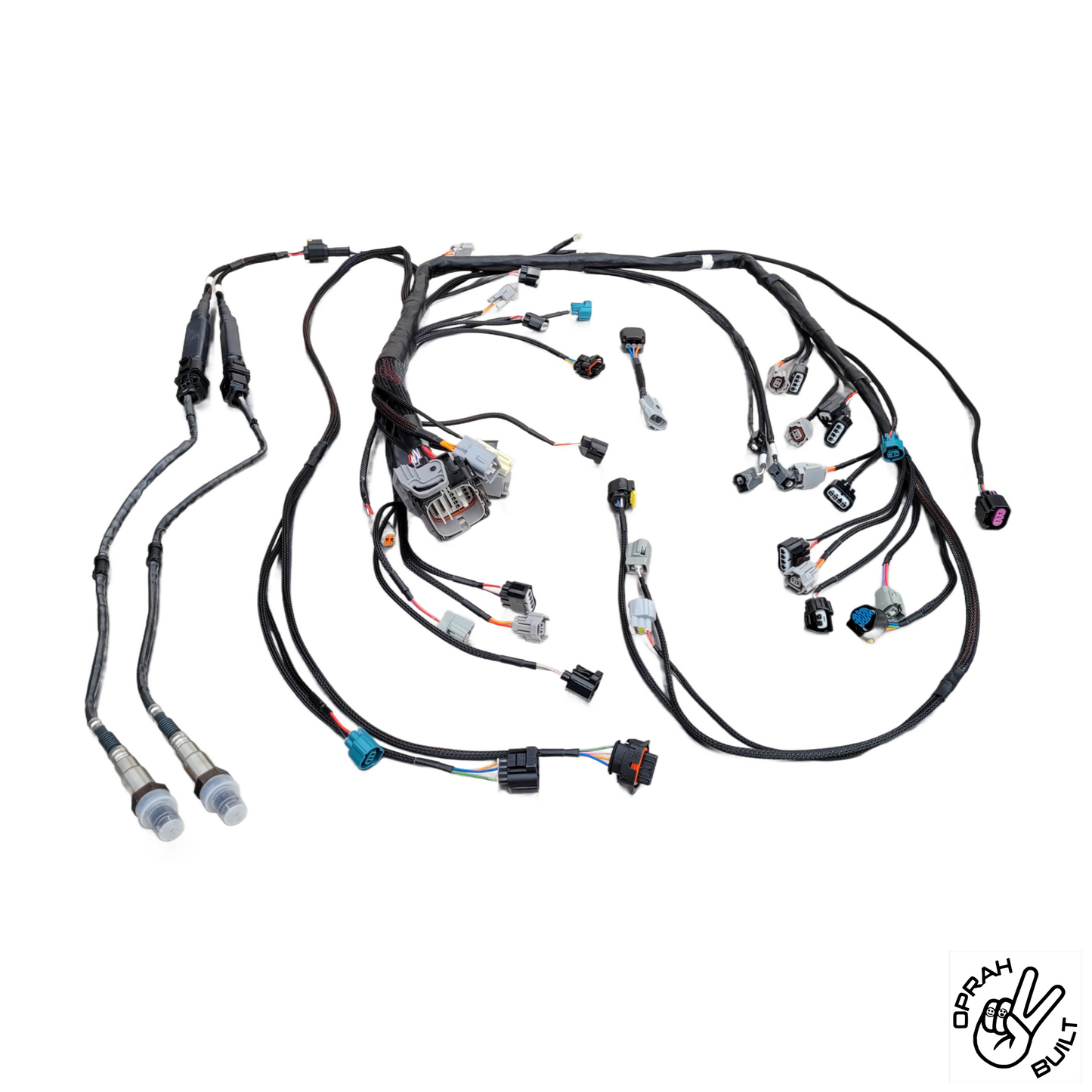

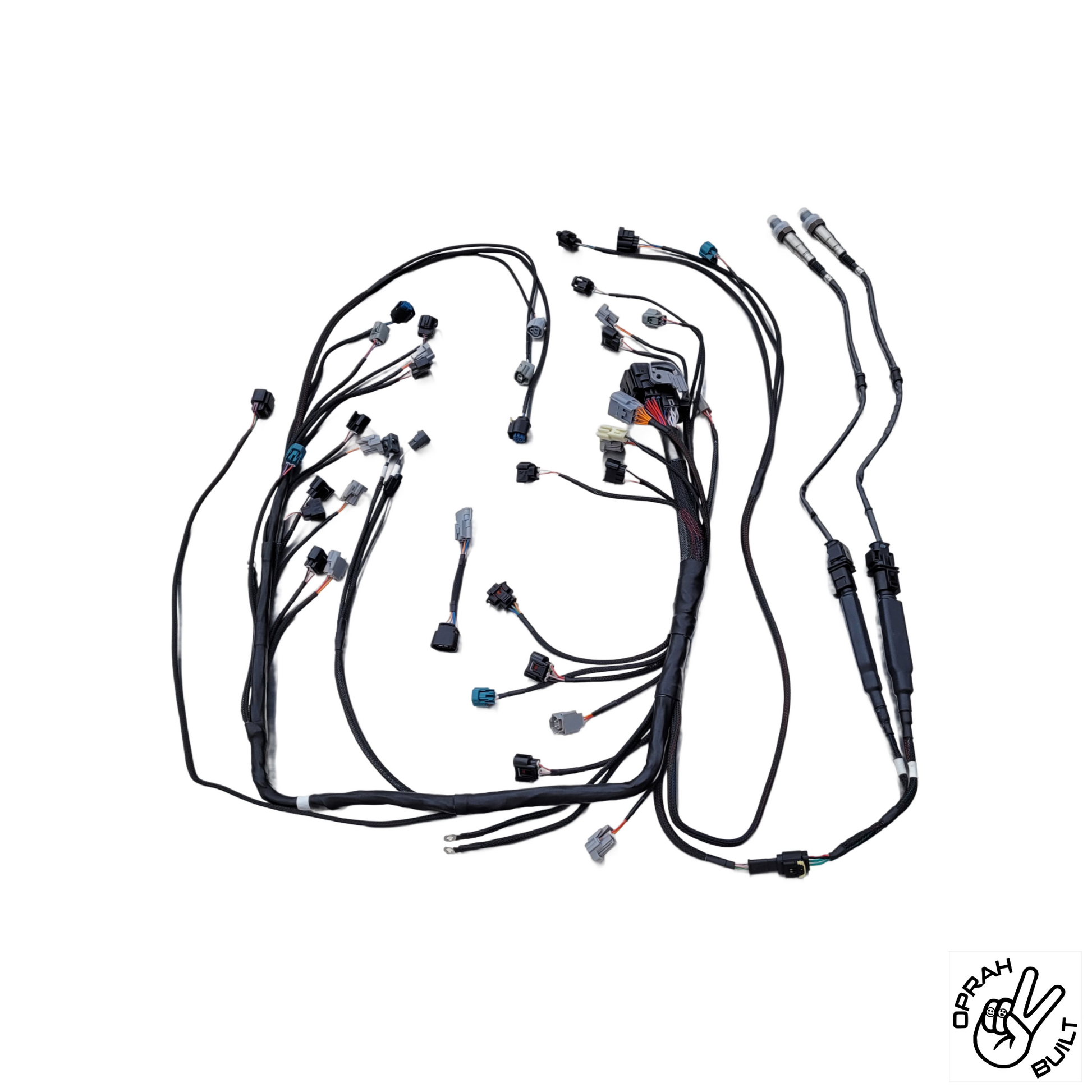

Engine Harness

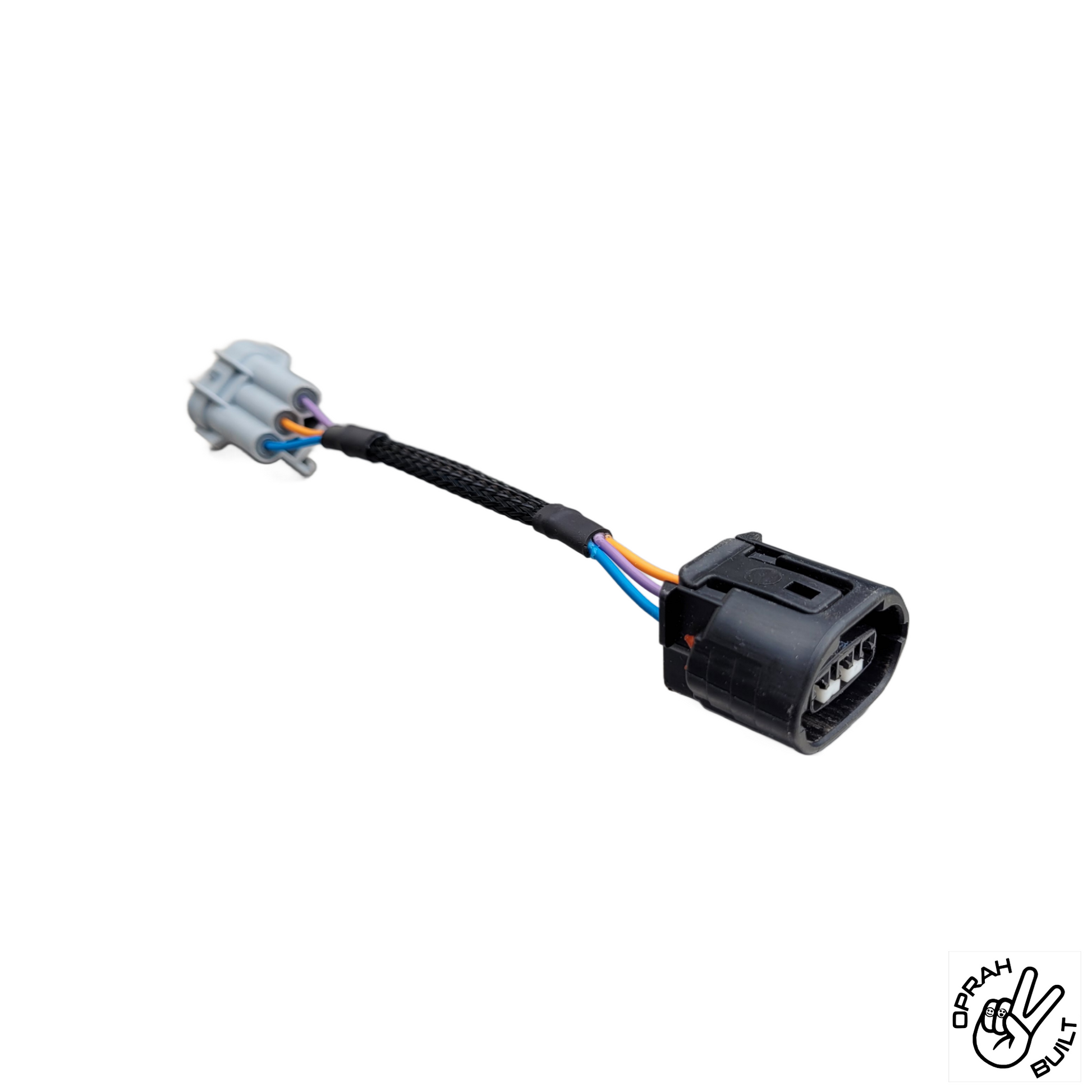

Alternator Patch Harness (13-16)
T-MAP Weldable Bung

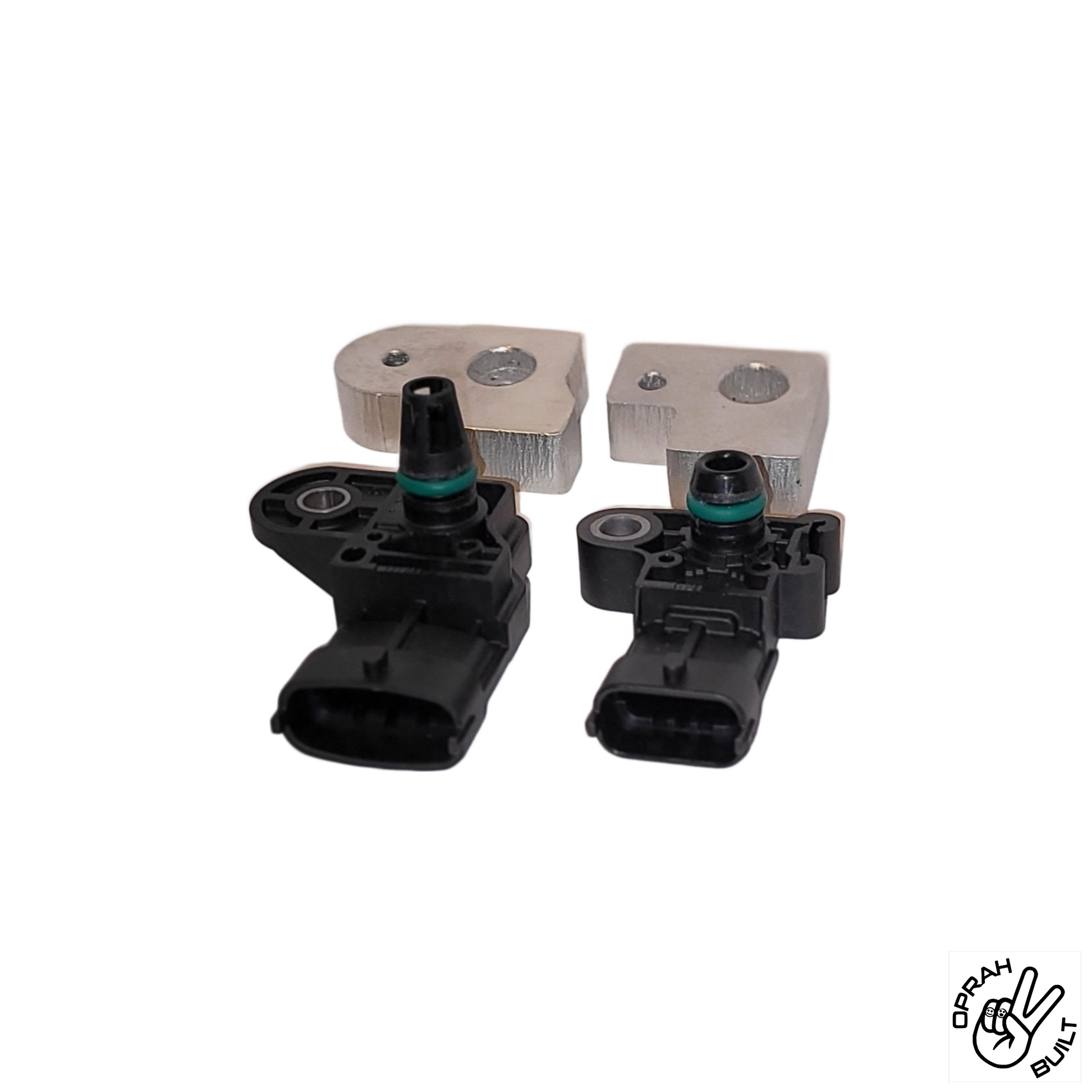

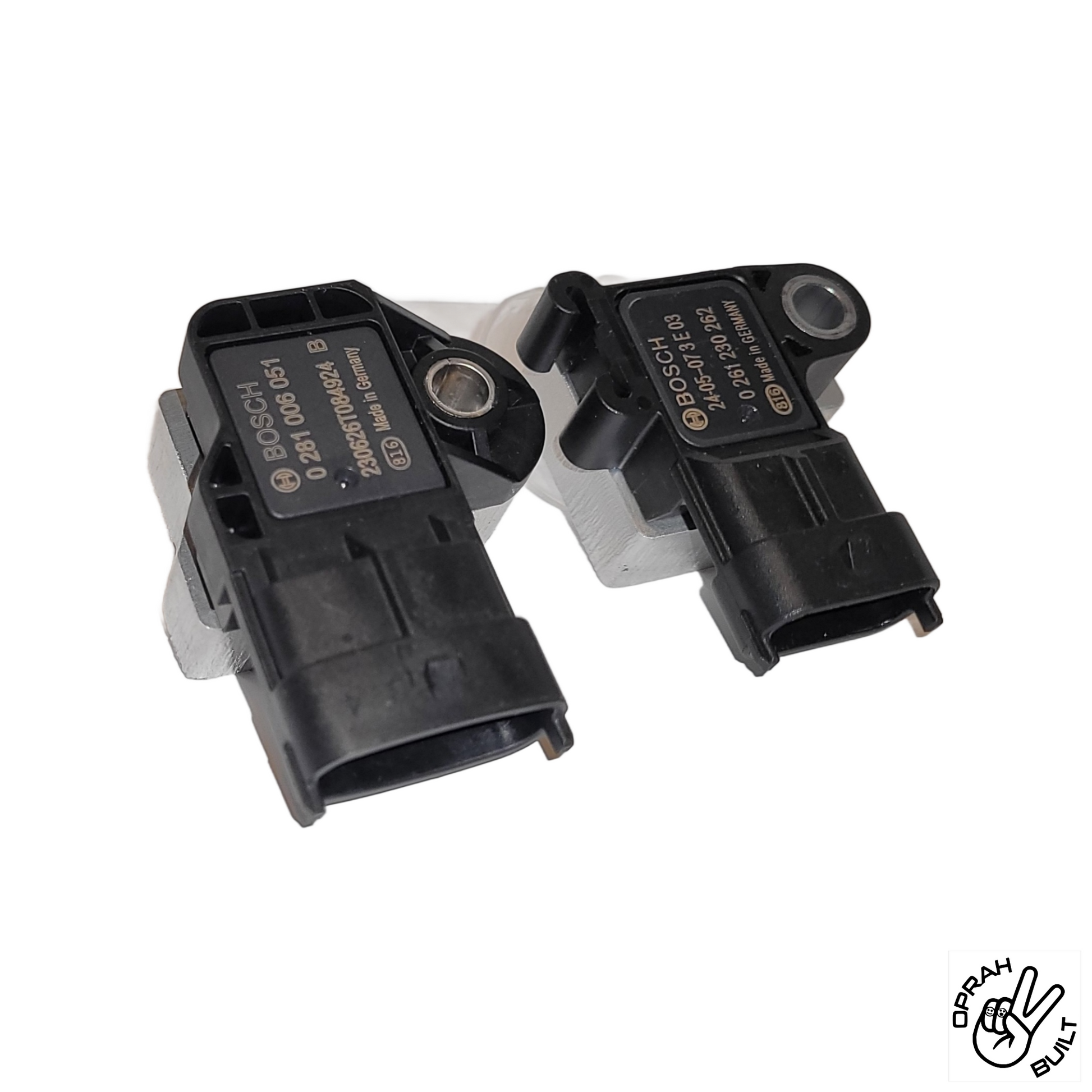

3.7 Bar Bosch T-MAP sensor (0261230435) *newly included
3 Bar Bosch MAP sensor (0261230262) *newly included
Sensor/Functions wired to DTM 6-pin on ECU Patch Harness for I/O expansion:
EVAP or WG already wired to the Engine Harness (Emissions or Turbo Control)
Purge Canister (Emissions)
Leak Detection (Emissions)
Vent Valve (Emissions)
Second CAN network pre-wired to the Engine Harness for expandability
Optional Items:
Single Wideband O2 Sensor: 1x Wideband controller & LSU 4.9 Sensor using 0-5v Signal
Dual Wideband O2 Sensor: 2x Wideband controller & LSU 4.9 Sensor using 0-5v Signal
Fuel Temp/Pressure Combo Sensor (026154401F)
Oil Temp/Pressure Combo Sensor (026154401F)
e85 Sensor (13577429)
(CAN Wideband/Lambda sensor compatible, inquiry with vendor.)
