Swap Kit 1UZ & 3UZ VVT to ZN6 ZC6 Toyota GT86 & BRZ

The 1UZ & 3UZ VVT engine swap kit is plug-and-play and compatible with the Link ECU G4x Xtreme which allows for OEM functionalities such as air conditioning, cruise control, ABS, power steering, seamless CAN integration, and traction control. This kit requires 3UZ style coil packs and the 3UZ 2-connector throttle body.

Compatibility:

• Link ECU G4x Xtreme
• 3.7 Bar Bosch T-MAP sensor (0261230435)
• 3 Bar Bosch MAP sensor (0261230262)

Included:

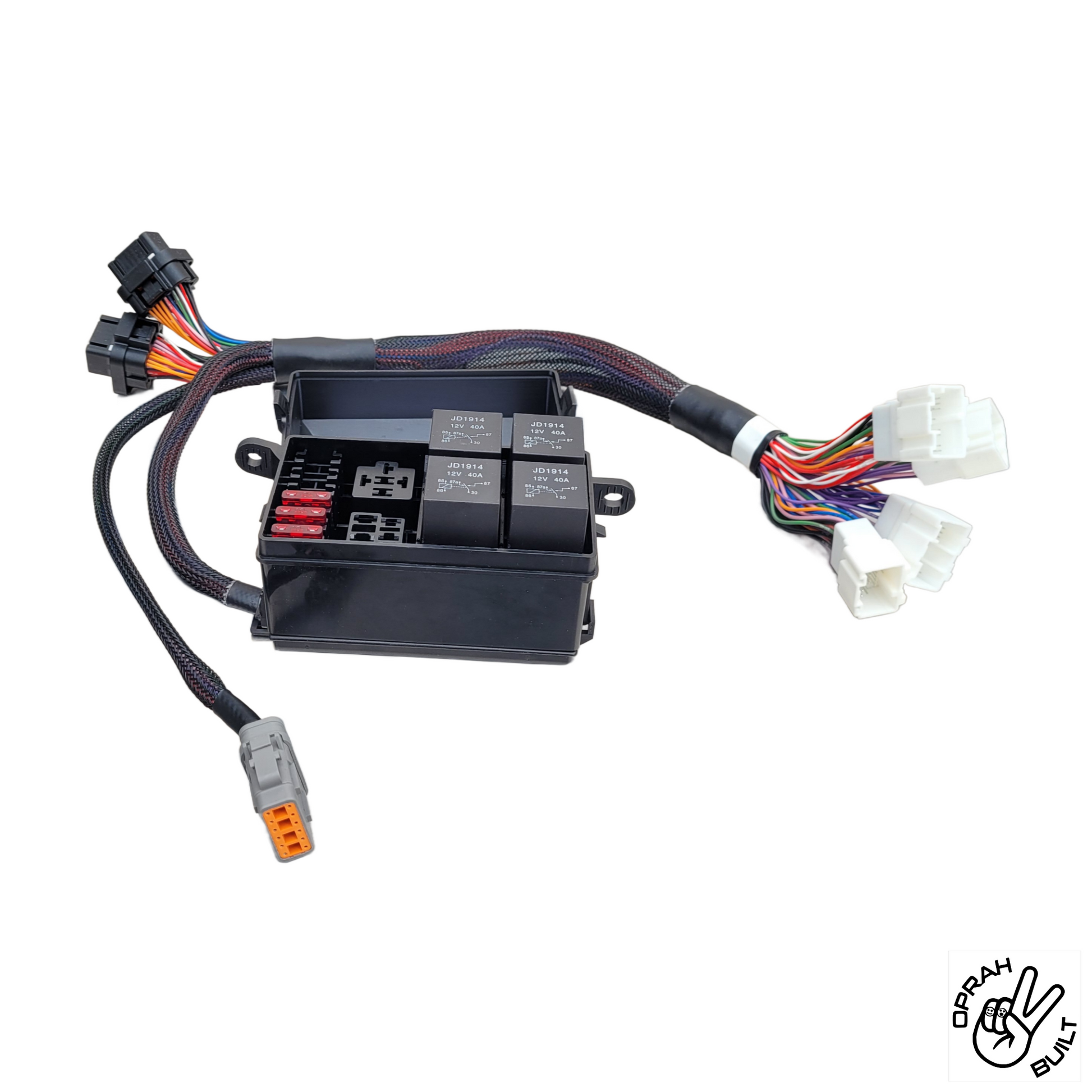

• ECU patch harness suited for Link ECU G4x Xtreme

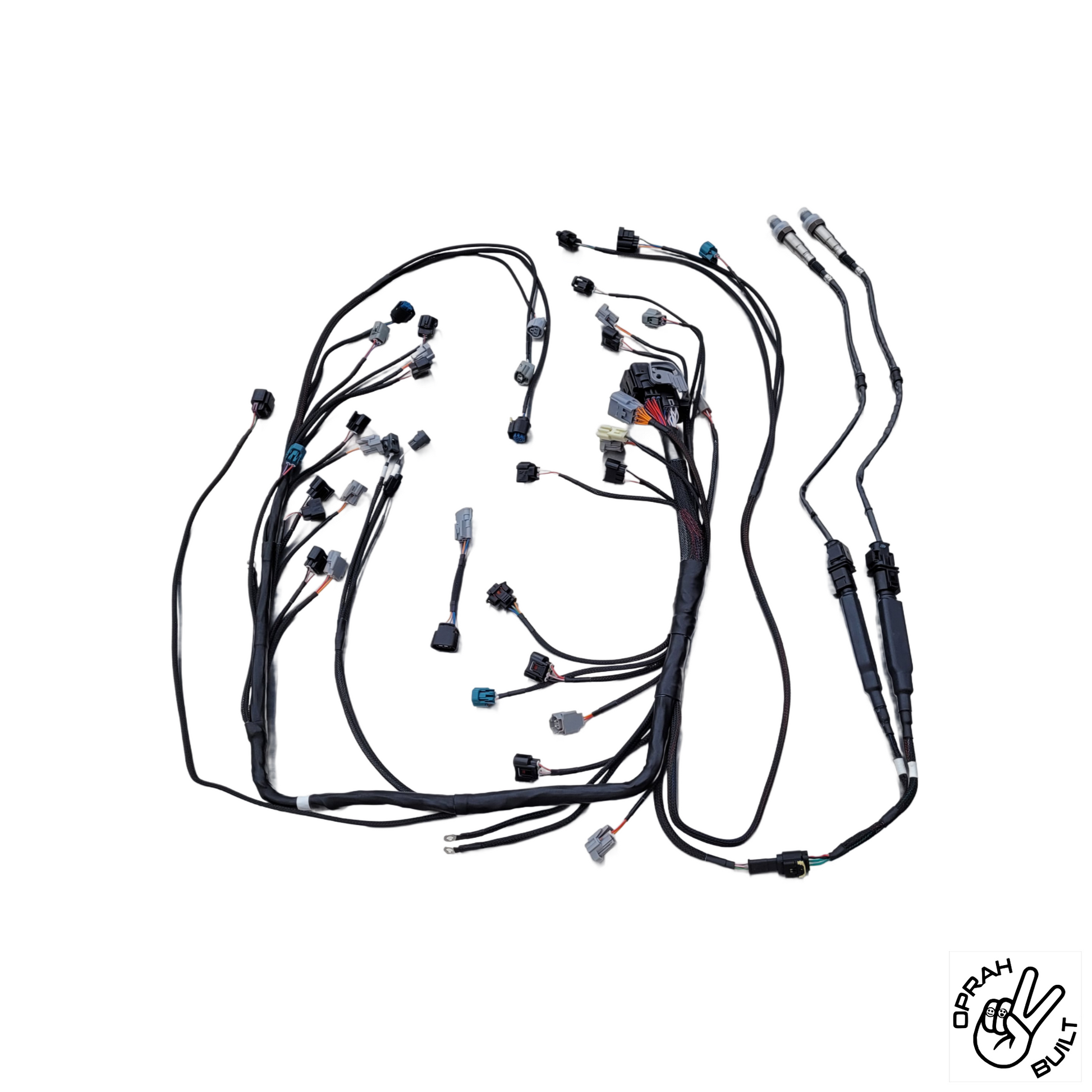

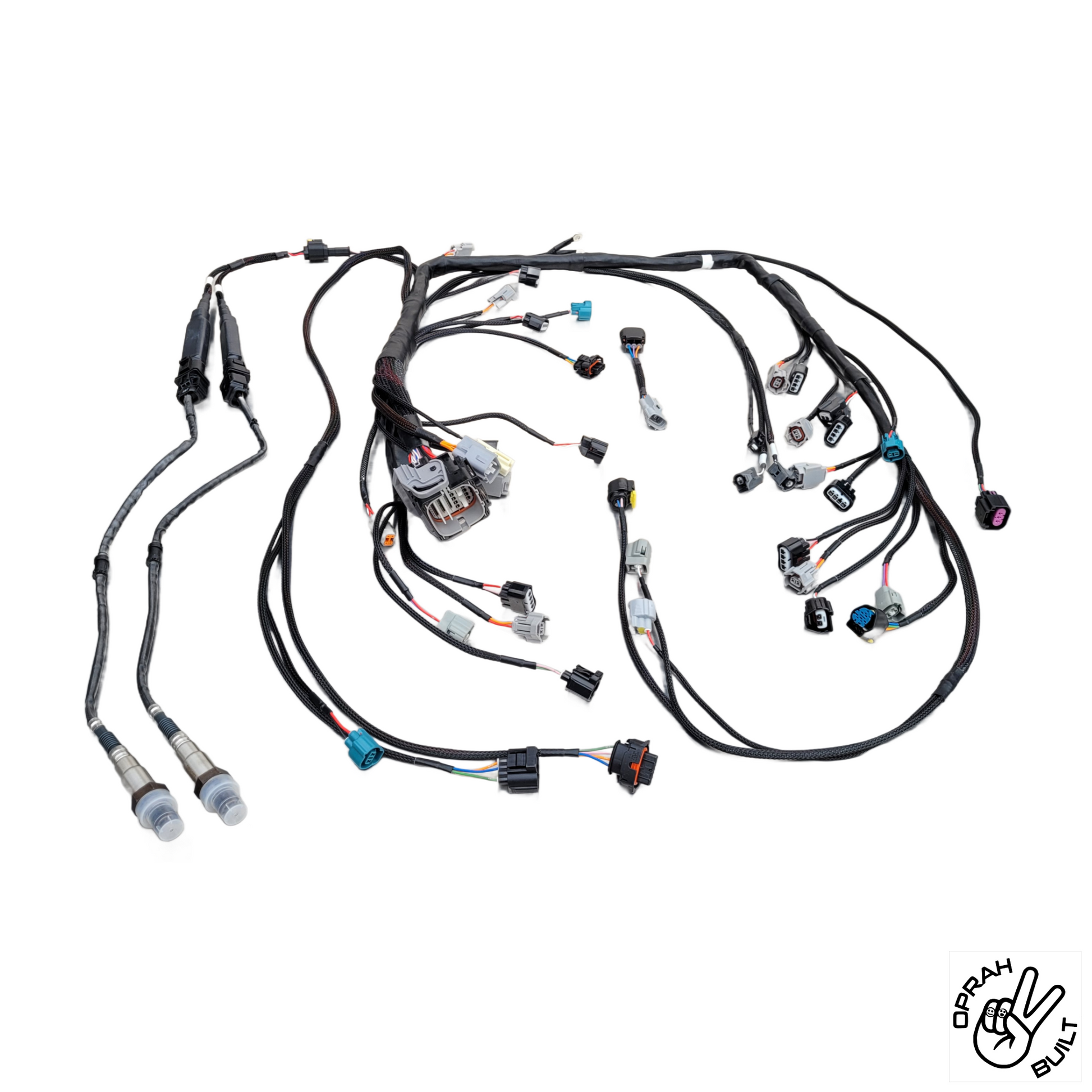

• Engine Harness

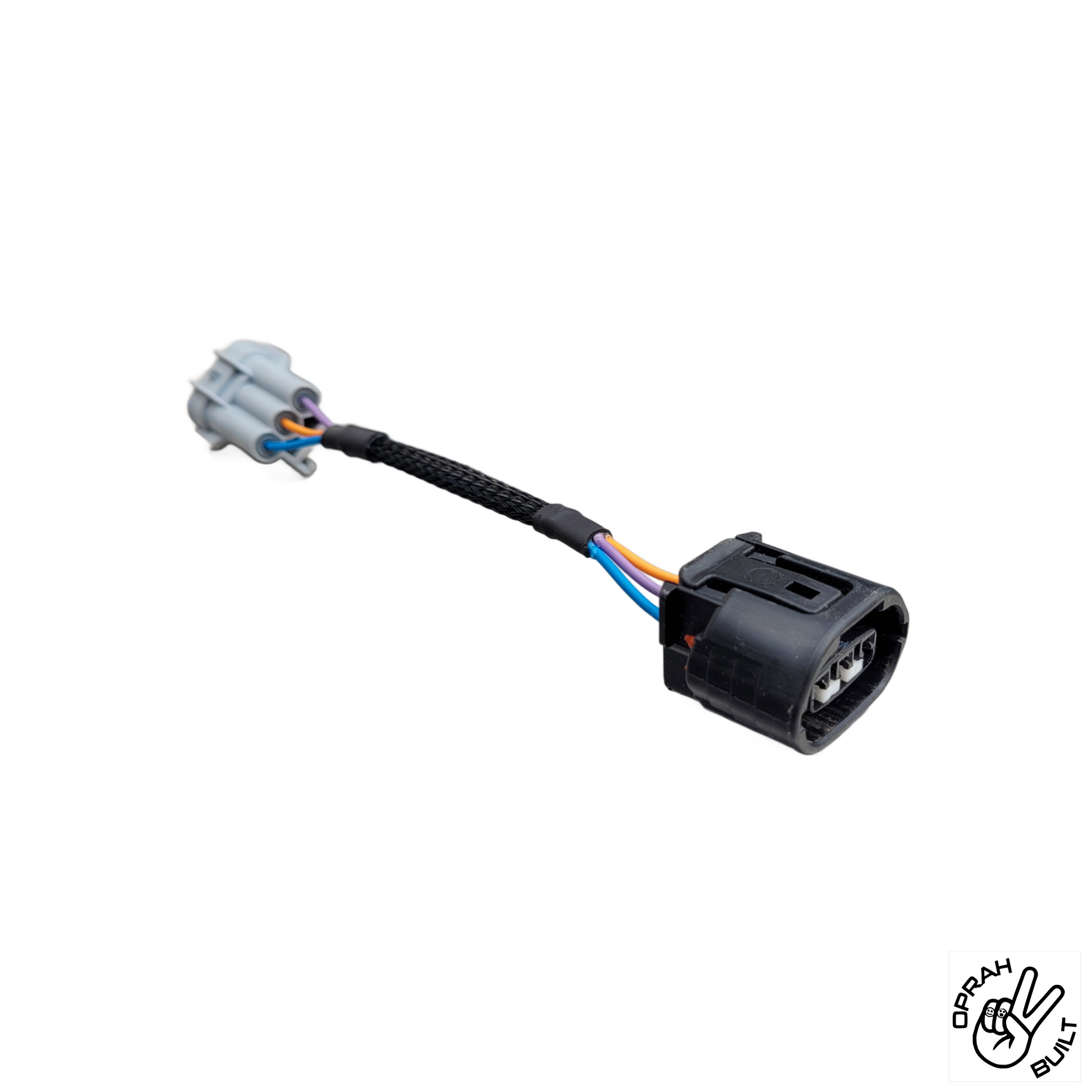

• Alternator Patch Harness

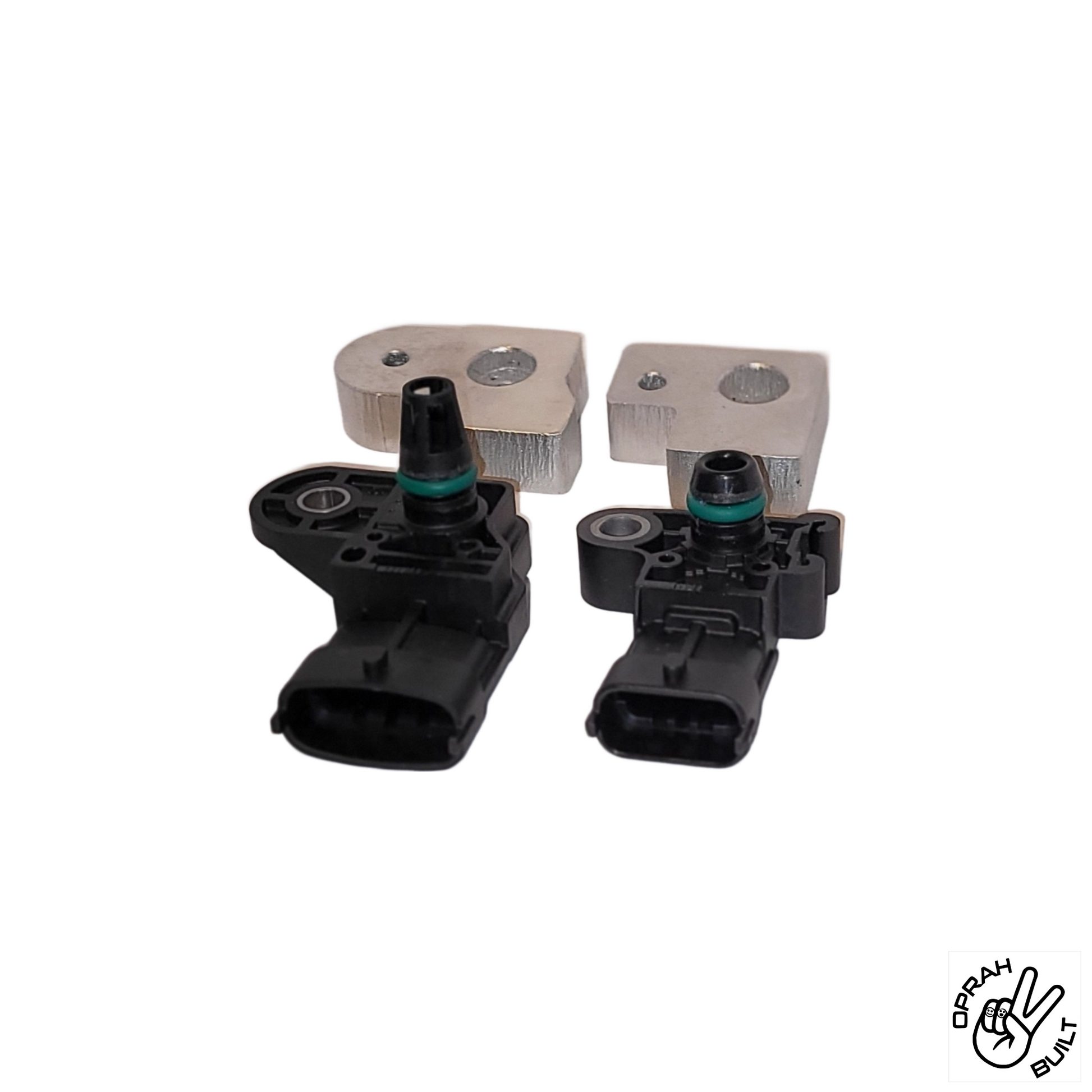

• 3 Bar MAP Weldable Bung
• T-MAP Weldable Bung

Sensor/Functions wired to DTM 12-pin on ECU Patch Harness for I/O expansion:

• EVAP or WG already wired to the Engine Harness (Emissions or Turbo Control)
• Purge Canister (Emissions)
• Leak Detection (Emissions)
• Vent Valve (Emissions)
• Second CAN network pre-wired to the Engine Harness for expandability

Optional Items:

• Single Wideband O2 Sensor: 1x Wideband controller & LSU 4.9 Sensor using 0-5v Signal
• Dual Wideband O2 Sensor: 2x Wideband controller & LSU 4.9 Sensor using 0-5v Signal
• 3.7 Bar Bosch T-MAP sensor (0261230435) Used for Air Temp and Pre-Throttle Pressure readings.
• 3 Bar Bosch MAP sensor (0261230262) Used for Manifold Pressure readings.
• Fuel Temp/Pressure Combo Sensor (026154401F)
• Oil Temp/Pressure Combo Sensor (026154401F)
• e85 Sensor (13577429)


(CAN Wideband/Lambda sensor compatible, inquiry with vendor.)
